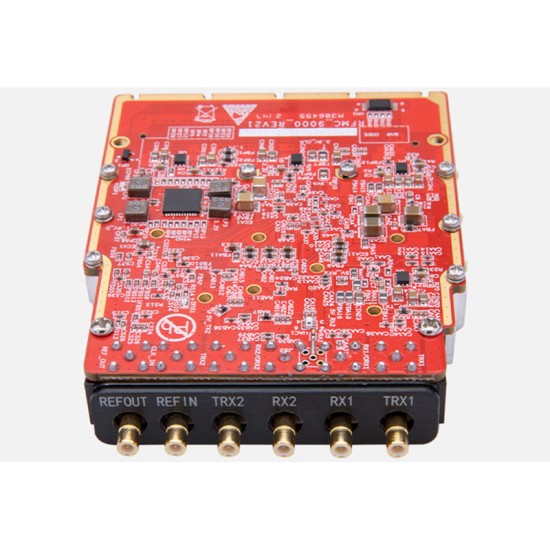

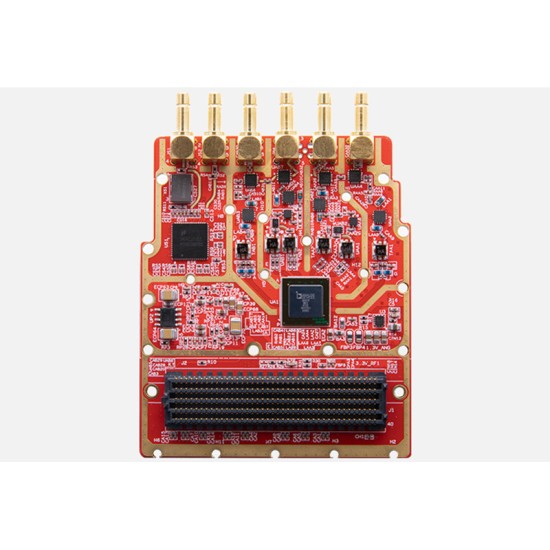

FH9000 16bit/14bit RF-ADC AD9009 FMC HPC Card
- Stock: In Stock
- Model: FH9000
- Weight: 3.00kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
190 samples sold
$3,250.00

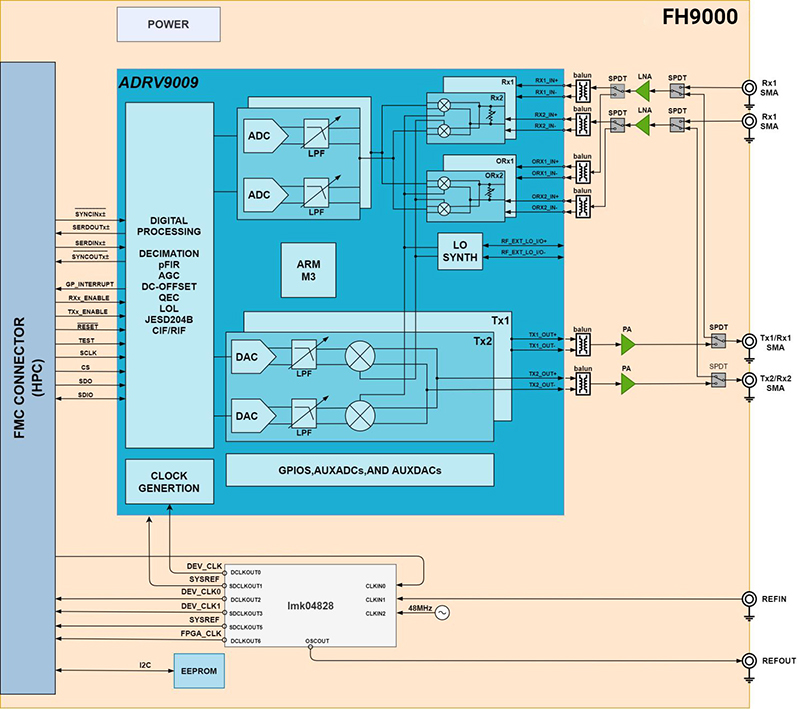

FH9000 is a high-performance, broadband, and highly integrated RF sub card based on the VITA57.1FMC architecture.The board is based on the agile transceiver ADRV9009 as the processing core, suitable for application in general software wireless Electric platform.
Applications
● 3G,4G and 5G macrocell base stations
● Phased array radar
● TDD active antenna systems
● Military communications
● Microwave, nonline of sight (NLOS) backhaul systemsElectronic warfare
● Portable test equipment
Key Features
● Chip Model: AD9009
● Overlay Band: 75MHz~6GHz
● 16bit ADC & 14bitDAC
● Supports TDD mode
● RF impedance matching 50 Ω
● Maximum RX bandwidth: 200MHz
● Maximum ORX observation channel bandwidth: 450MHz
● Maximum TX synthetic bandwidth: 450MHz
● Integrated power amplifier(14dB@2GHz), supporting a maximum transmission power of 10dBm output
● Supports internal or external reference clocks
● JESD204B Digital Interface
● FMC HPC connector
● Dimensions: 76.5 x 69 mm form factor
