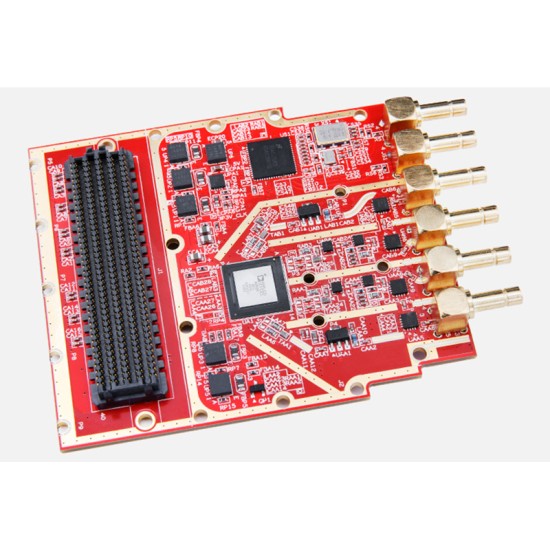

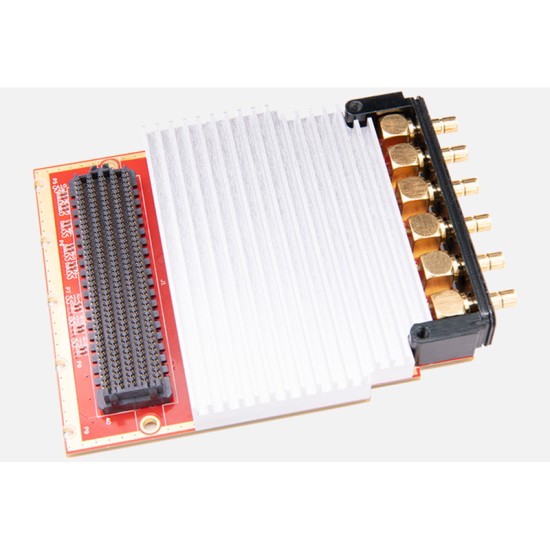

FH7000 16bit/14bit ADC AD9371 Communication RF FMC HPC Card
- Stock: In Stock
- Model: FH7000
- Weight: 3.00kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
190 samples sold
$2,097.00
Product Description：

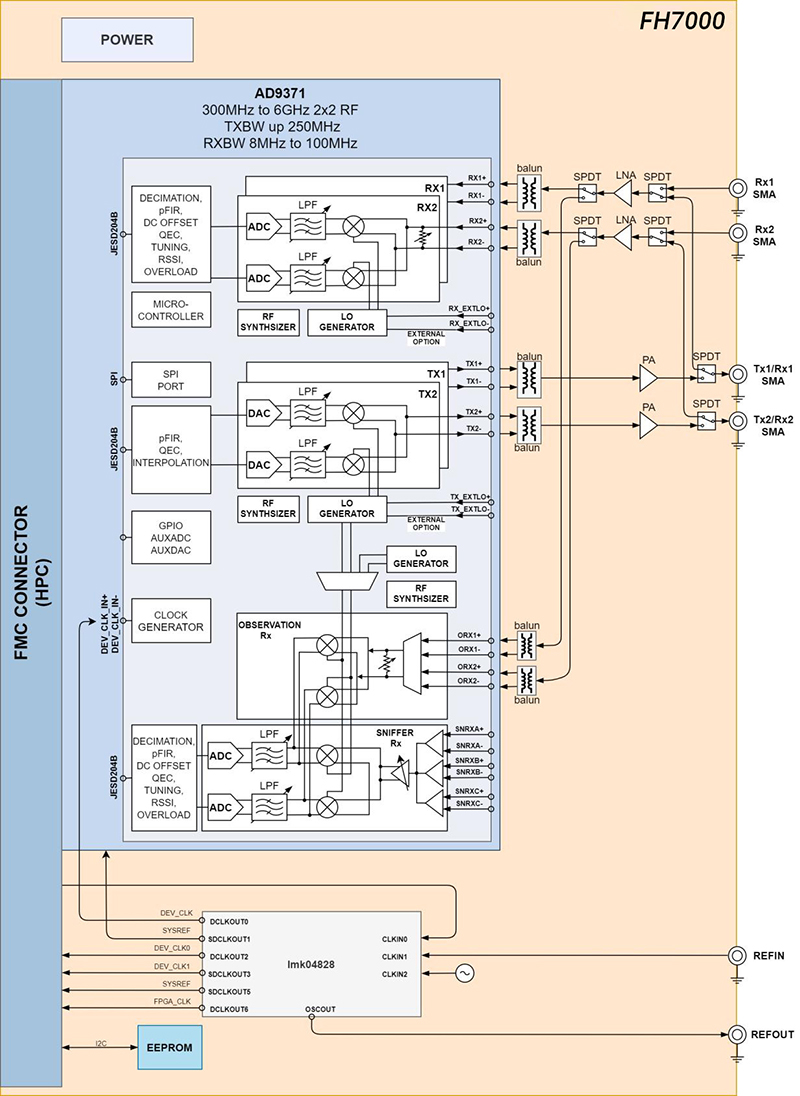

FH7000 is a high-performance, broadband, and highly integrated RF sub card based on the VITA57.1FMC architecture.The board is based on the agile transceiver AD9371 as the processing core, suitable for application in general software wireless Electric platform.
Applications：
● 3G,4G and 5G macrocell base stations
● Military communications
● FDD and TDD active antenna systems
● Portable test equipment
● Microwave, nonline of sight (NLOS) backhaul systemsElectronic warfare
● Massive MIMO
Key Features:
● Chip Model: AD9371
● Overlay Band: 300MHz-6GHz
● 16bit ADC & 14bitDAC
● Supports half duplex, full duplex, TDD/FDD mode
● RF impedance matching 50 Ω
● Maximum RX bandwidth: 8MHz-100MHz
● Maximum TX synthetic bandwidth: 250MHz
● Integrated power amplifier（ 14dB@2GHz ）, supporting a maximum transmission power of 10dBm output
● Supports internal or external reference clocks
● JESD204B Digital Interface
● FMC HPC connector
● Dimensions: 76.5 x 69 mm form factor
